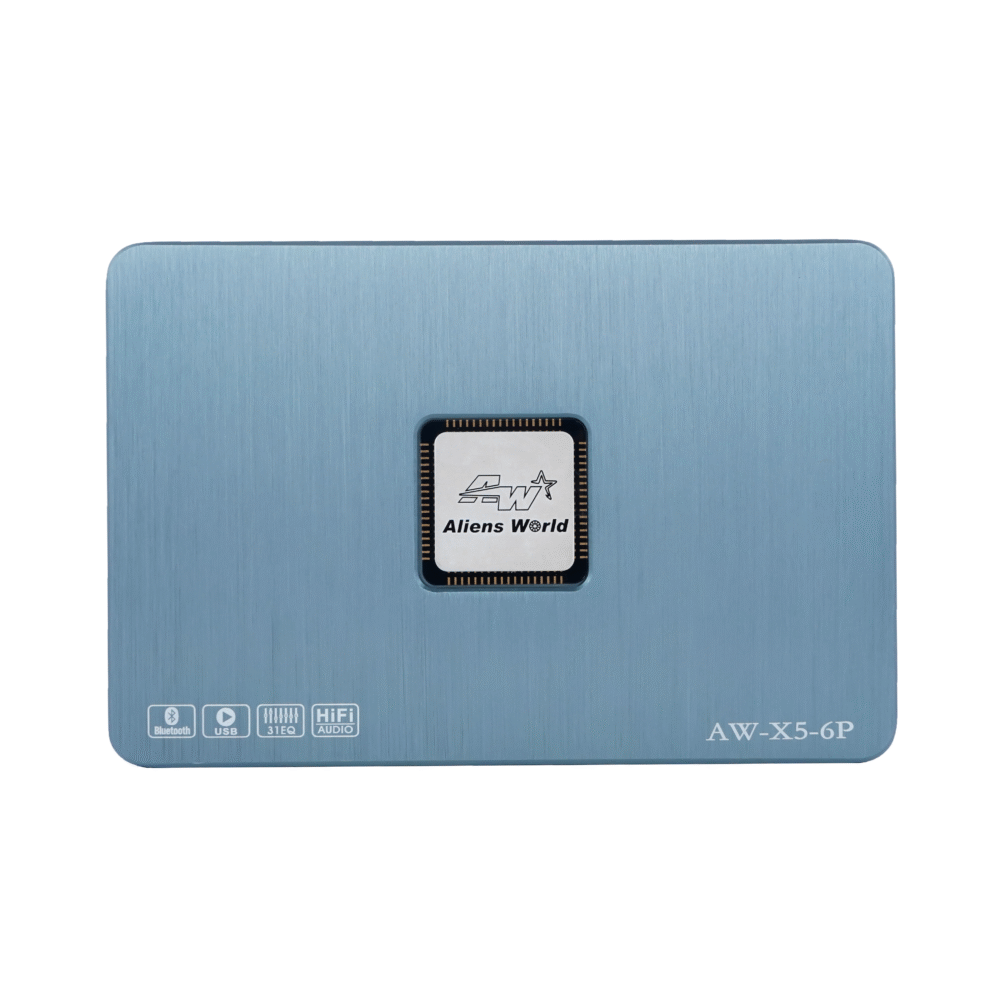

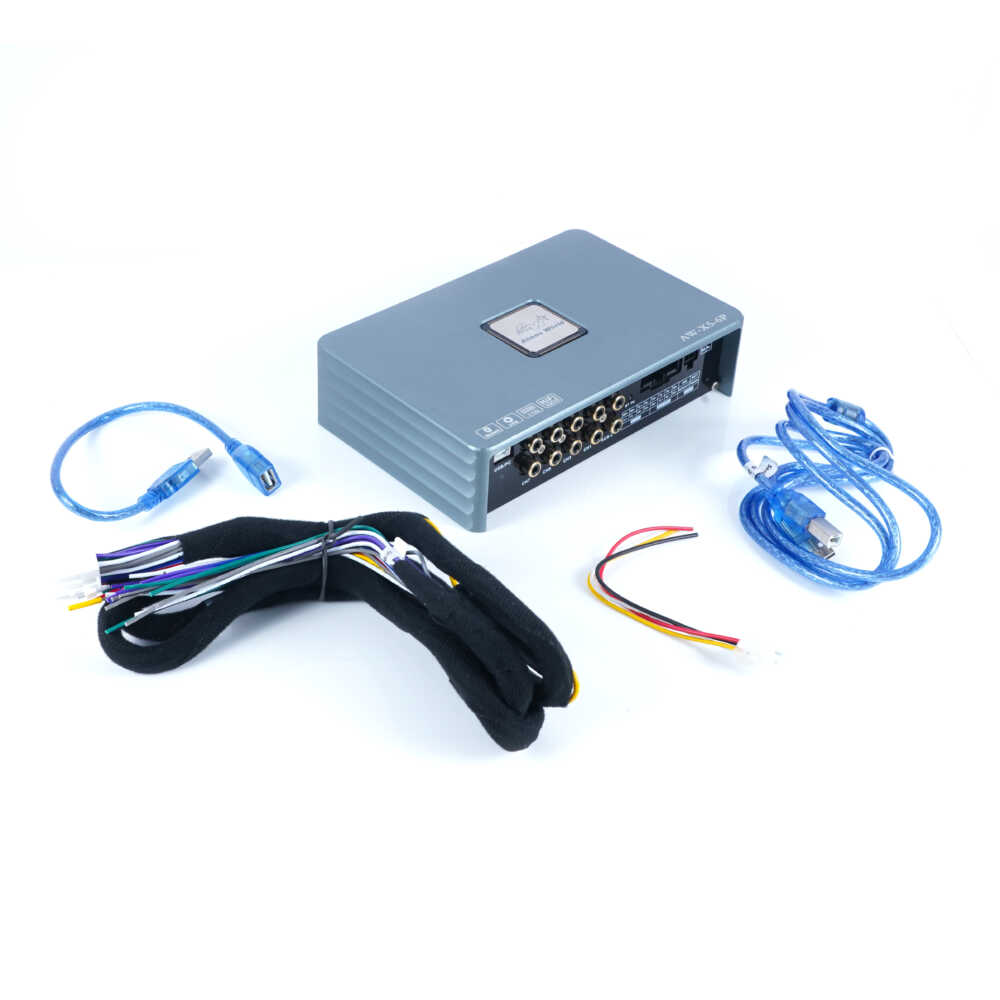

The AW-X5-6P DSP is an advanced digital signal processor designed to elevate audio performance in sophisticated audio systems. Featuring cutting-edge DSP technology, this device offers precise control over audio signals, optimizing sound quality and ensuring immersive listening experiences.
| Specification | Details |
|---|---|
| Model | X5-6P |
| Type | 6 channels DSP amplifier |
| SNR (Signal-to-Noise Ratio) | Greater than 105dB (reference 1W output) |
| RMS Power RMS | 6 x 60W |
| THD+N (Total Harmonic Distortion + Noise) | 0.38% |
| Bottom Noise | -90dB |
| Output EQ | 31 PEQ, GEQ |
| Filter Slope | 24dB/oct |
| Delay | 20ms |

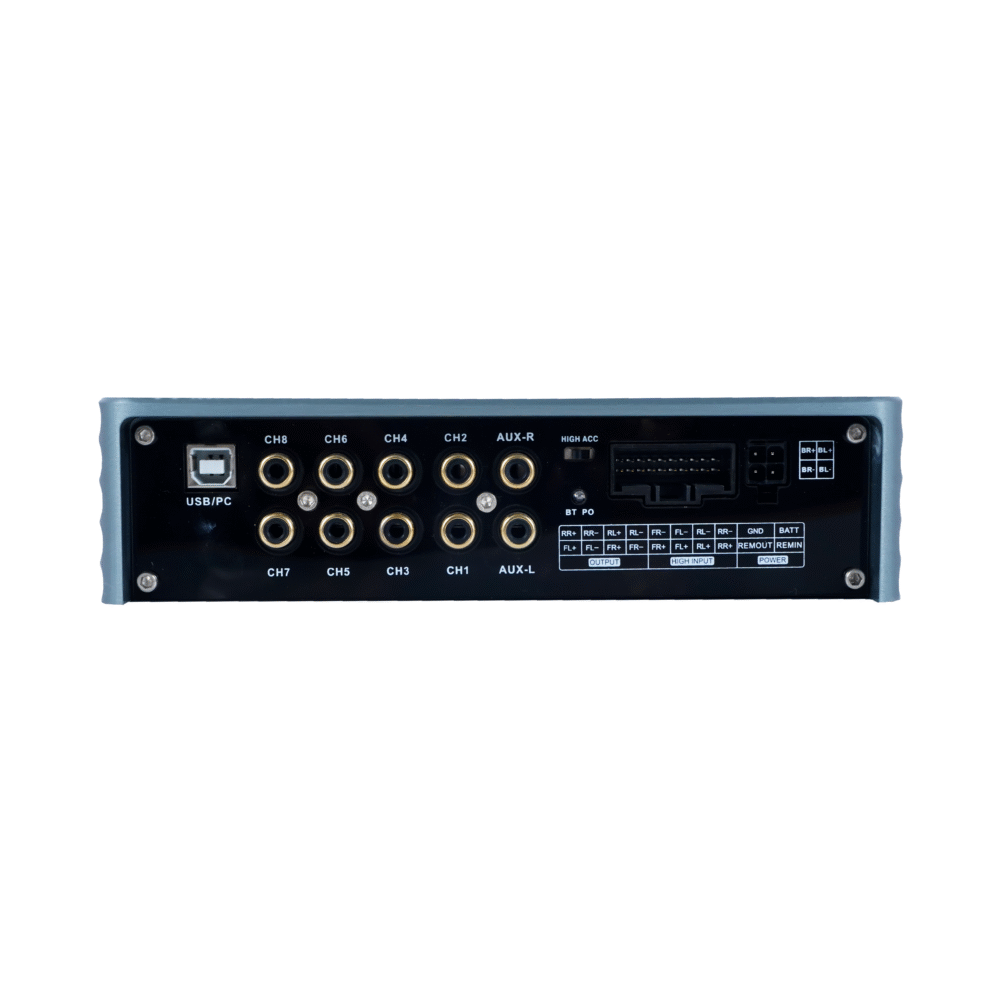

| Input Signal | High Level : 4 channels RCA Audio RCA: 2 channels Bluetooth: 5.0 support Optical Fiber: — USB: 5.0 support Sound Card: — |
| Output Signal | High Level channel Amplifier: 6 channels RCA Audio RAC: 8 channels Output Signal Gain |
| Inputs | 4 channels |
| Input Sensitivity | 2.7VRMS |
| Outputs | 6 channels |
| Outputs Voltage RCA/Cinch | 0.4VRMS |
| Amplifier Technology | Class AB+D |
| Frequency Response | 20Hz – 20kHz |
| DSP Resolution DSP | 32-bit |
| DSP Power Frequency DSP | 480MHz |
| Sampling Rate | 48k |
| Total Harmonic Distortion (THD) | 0.10% |
| High Pass | 19.7Hz |
| Lowpass | 20.6kHz |
| Operating Voltage | 9.5V – 16V |
| Input Impedance | 22kΩ |
| Output Impedance | 51Ω |
| Max. Current Draw | 8A |
| Current | 3.8A – 20A |
| Idling Current | 0.5A |
